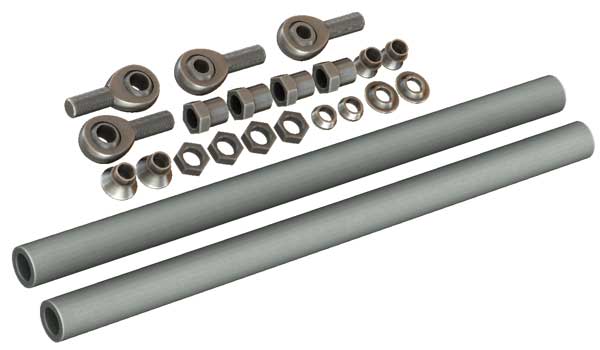

Heavy Duty Steering Kit with 3/4 Heims

This is our universal heavy duty crossover steering kit with our super strong 3/4" chromoly heat treated heim joints.  This kit requires cutting the DOM tubing to length and welding in the threaded tube inserts to match your particular application.  The heim joints feature a 3/4" threaded shank, and with the use of the misalignment spacers, 5/8" hardware will be used to attach the joints to the knuckles and pitman arm.

• Two 54" long pieces of 1 1/2"OD 1/4" Wall DOM
• One Right Hand One Left Hand ¾-16 x 3/4 Heim
• One Right Hand One Left Hand ¾-16 x 5/8 Heim
• Two RH Hex Weld-in threaded tube inserts for 1" ID tubing
• Two LH Hex Weld-in threaded tube inserts for 1" ID tubing
• Two 5/8"Misalignment Spacers
• Two 3/4-5/8" High Misalignment spacers
• Two 5/8" Safety Washers
• Two 3/4"-5/8" Safety High Misalignment Spacers
