3/4 inch Heim Joints
3/4 inch Heim Joints
3/4 inch Heim Joints
3/4 inch Heim Joints
Sale

3/4 inch Heim Joints

$47.29
$40.20 In Stock Pre-Order Sold out
Thread Direction
Bolt-hole Size and Spacer Mounting Width
Notify when available
  • Description
  • Shipping and Refund
  • Reviews

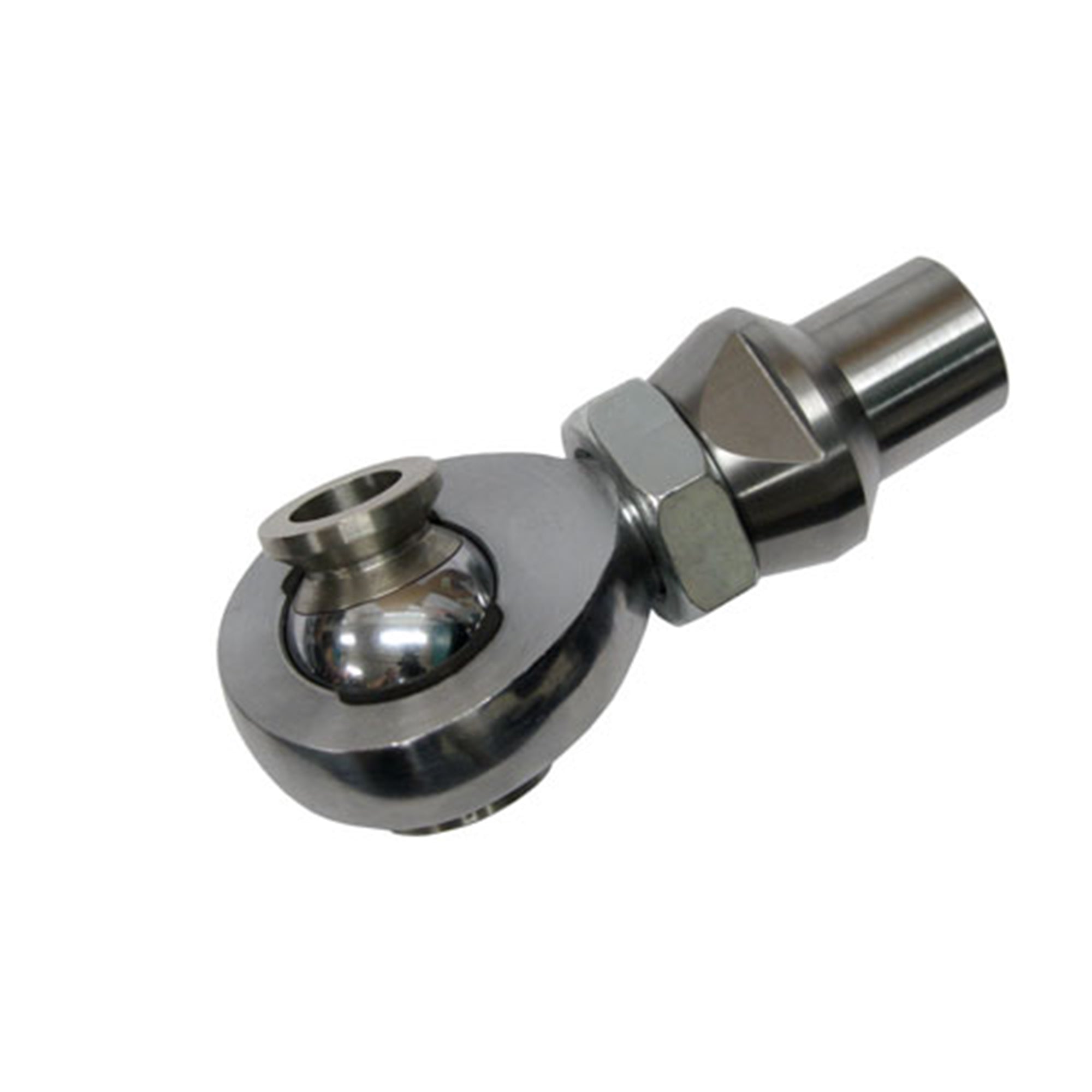

This kit includes one 3/4" -16tpi Chromoly rod end with 3/4" bore, one jam nut, one WRENCH FLAT tube adapter for 1.0 ID -1.5 OD tubing, and two stainless steel 9/16" or 5/8"- 3/4" high misalignment spacers. The mounting width with the spacer is 1.75" with a choice of 9/16" or 5/8" hole.


Great for the builder on a budget. These rod ends from Midwest Control Products Corp are a great way to add strength, reliability, and flexibility to any situation that requires use of a rod end such as in suspension or steering applications. The -12 series utilizes a high strength Chromoly body with a polished chrome finish sure to impress. The ball is made from heat treated bearing steel for strength and hard chrome polished for a smooth surface. The race is injection molded nylon which keeps the joint quiet and tight for years and years of usability.

3/4" -16 tpi thread with 3/4" bore. Ultimate Radial Static Load (lbs) 27019.

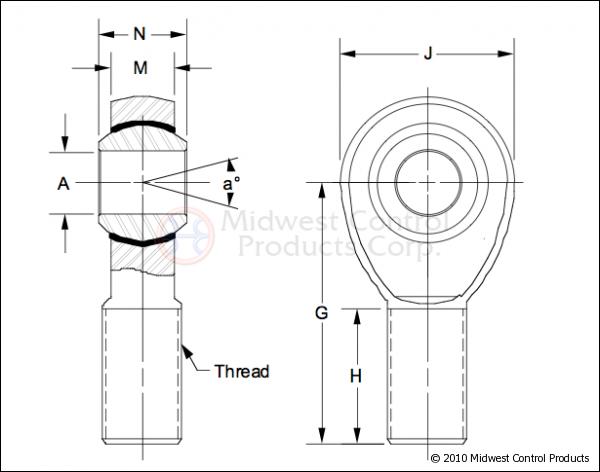

Part Number

System

Thread

A

G

H

J

M

N

a°

Ultimate Radial Static Load (lbs)

Material

RE120x

Inch

3/4-16 RH

0.751

2.875

1.750

1.755

0.593

0.875

36

27019

Chrome Moly
